SOFTWARE INSTALLATION (CONTINUED)

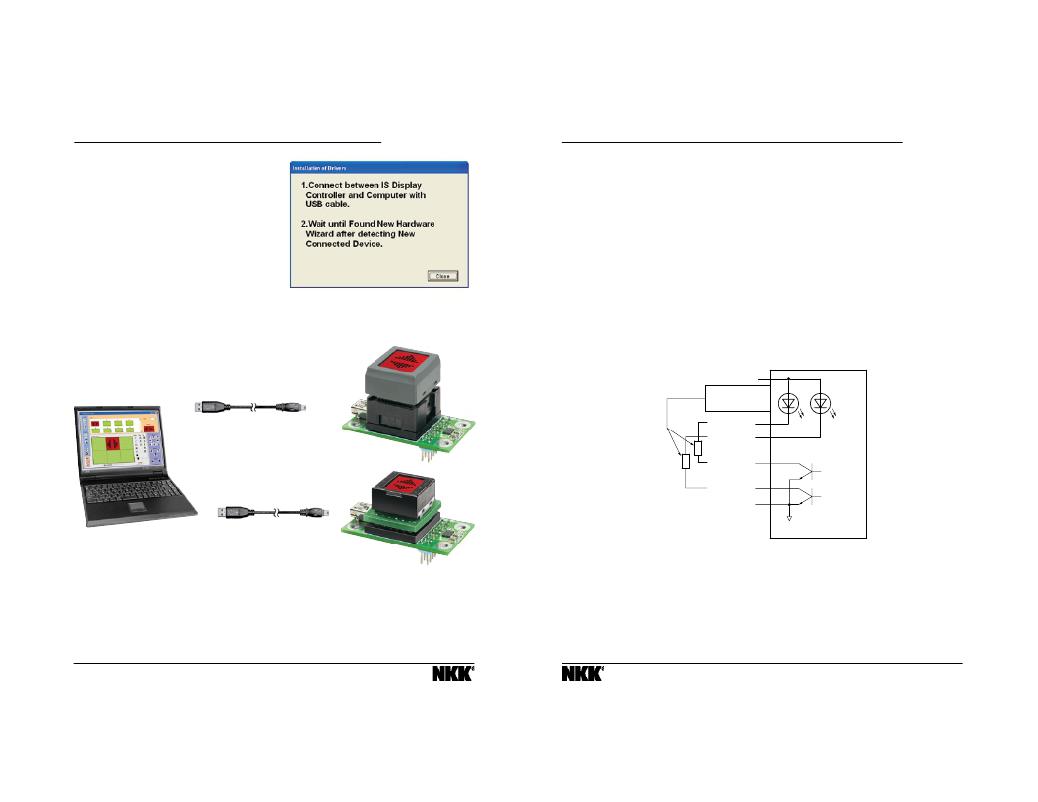

4. Installation window opens again
(Figure A). Continue to install
drivers.
5. Click on “Installation of Drivers”
and follow the onscreen instruc-
tions. After installing drivers,
follow directions as shown in
Figure B.
CONTROLLING INFORMATION (CONTINUED)
Control of Backlight LEDs
For LED control, settings of “IS Easy Editor” are transferred to IS Display
Controller via switching transistors connected to LED_1c/LED_2c.
? To activate LED backlight, supply power to LEDs and insert resistor for
current limitation.
? Drive backlight LEDs at voltage two (2) times greater than forward
voltage of LEDs.
NOTE: If using Windows XP, a
warning message “has not
passed Windows Logo testing”
may appear. Click “Continue
Anyway” in message box.
Figure B
? Between LED_1k-LED_1c or LED_2k-LED_2c, insert resistors for current
limitation as displayed in diagram below.
DEM KIT–1
LED_com
2
Resistor for
Current Limit
USB Type A Mini-B Cable
allows transfer of bitmaps
from PC to IS Easy Controller
LED_1k
LED_2k
LED_1c
LED_2c
GND
7
8
9
10
3, 4
Backlight LED
LED Control
Output
DEM KIT–2
Uninstall
6
1. To uninstall “IS Easy Editor”, locate “Add or Remove Programs” in
Start/Control Panel.
2. Select “IS Easy Editor” and click “Change/Remove”.
NOTE: Consult factory if using IS Switch or Display other than what is
included in DEM KIT.
11
